DIN6987140SRK10X50

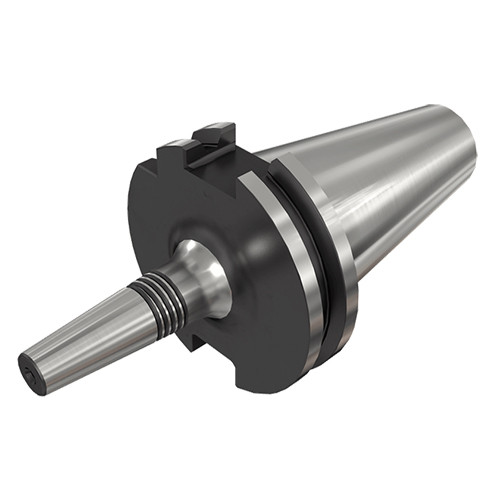

TungShrink thermal shrinking holder for carbide shank with DIN69871 shank
Price: Log in For Price

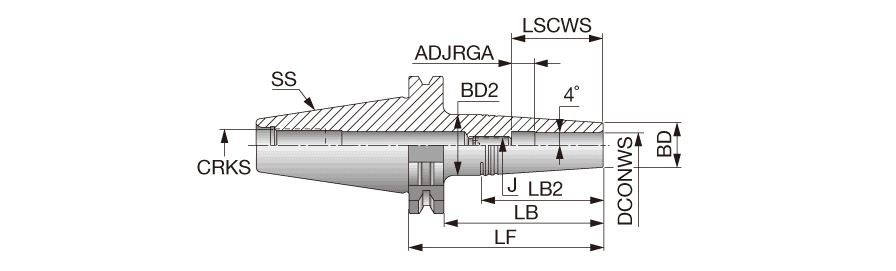

| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Shank Type | Round |
| Shank Size (SS) | 40. | Application | | Tapered shape interface | |
| Body Length (LB) | 50 mm | Thread Designation Inside (THID) | M12 |
| Body Length_2 (LB_2) | 42.4 mm | Clamping Length Workpiece Side (LSCWS) | 69.1 mm |
| Body Diameter (BD) | 16 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 22 mm | Tool Type | DIN 69871 |
| Body Taper End Diameter (BTED) | 137.5 mm | Body Material | Steel |
| Overall Length (OAL) | 69.1 mm |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide shank with DIN69871 shank | Country of Origin | ISRAEL |
Shipping Info
Package Weight
2.046
