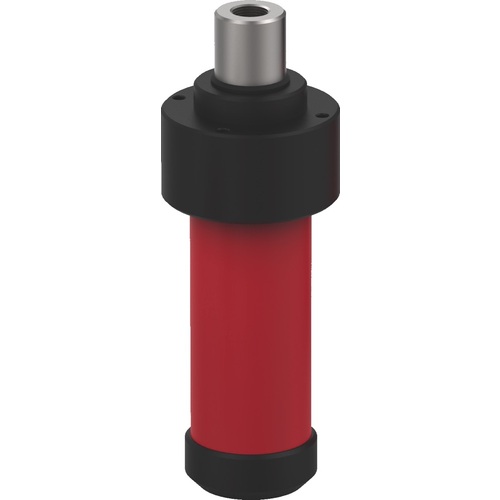

| Type | Pneumatic Power Cylinder | Vertical Clamp Stroke | 0.24 |
| Style | Power Cylinder with ISO Piston Rod End | Distance Body Side to Piston Rod Centerline | 1.435 |
| Capacity | 1350 lbs | Mounting Hole to Piston Rod Centerline | 1.26 |
| Clamping Force | 1350 lbs | Cylinder Width | 2.13 |
| Base Width | 2.3 | Model No | WK600-15-6-1 |
| Length | 2.3 | Clamp Height | 7.91 |
| Height | 7.91 | Stroke | 0.59 |
| Width | 2.87 | Distance from Top to Clamp Port Center | 2 |
| Mount Diameter | 2.52 | Cylinder Rod Diameter | 0.98 |
| Overall Length | 2.3 | Cylinder Height | 7.91 |
| Overall Height | 7.91 | Distance from Base to Cylinder Rod Height | 7.91 |
| Overall Width | 2.87 | Cylinder Rod Recess | 0.98 |
| Bore Size | 1.97 | Temperature Range | 23°F-167°F |
| Port Size | G1/8 | Function | Two stage power cylinder |
| Dowel Size | 10mm | Series | Type WK |
| Hole Size | M6, 10mm Deep | Weight | 4.5 lbs |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
4.5000
