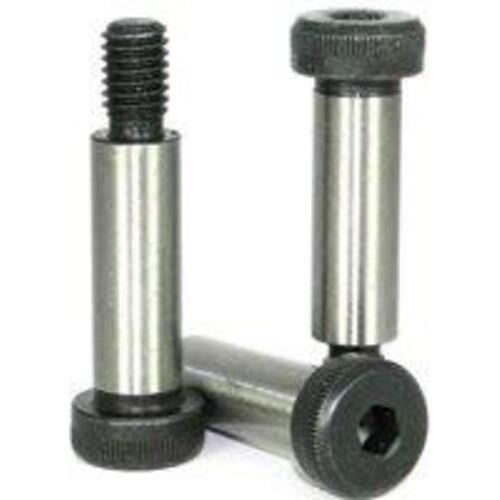

M8 × 20 mm - Black Finish Heat Treated Alloy Steel - Shoulder Screws - Socket Head
| Material | Heat Treated Alloy Steel | Finish | Black Finish |
| Shoulder Diameter | M8 | Standard Pack | 25 |
| Shoulder Length | 20 mm | Hex Key Size | 4 mm |
| Thread Size | M6-1.00 |
Product Features
| Remarks | •A hex socket screw with an enlarged, unthreaded shoulder under the socket driven head. •The threaded portion of the shoulder screw is usually one standard size below the shoulder diameter. •Shoulder screws are often referred to as "stripper bolts". •Most used for rotation or sliding applications, such as pulley shafts, in punch work, or for use as a bearing pin. •Shoulder bolts are black in appearance. | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.034
